GE DS3820PSCB1C1B電源模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE DS3820PSCB1C1B 電源模塊是通用電氣（GE）公司生產的一款高性能電源模塊，廣泛應用于工業自動化、過程控制和電力系統中。該模塊在設計上強調可靠性和高效性，以滿足各種工業應用的需求。以下是對該電源模塊的詳細介紹，包括其主要功能、技術規格、應用領域等。
主要功能
電源供應：
- 提供穩定的電源輸出，確保連接設備（如控制器、傳感器、執行器等）在所需電壓和電流下正常運行。
過載保護：
- 內置過載和短路保護功能，防止因電流過大導致設備損壞，確保系統的安全性和穩定性。
故障診斷：
- 具備故障檢測和報警功能，通過指示燈或通訊接口向用戶提供運行狀態信息，便于故障排查和維護。
熱管理：
- 設計有有效的散熱機制，確保在高負荷條件下穩定運行，延長設備使用壽命。
高效能設計：
- 優化的電源轉換效率，降低能耗，提高整體系統的能效。
技術規格
輸入電壓范圍：
- 該模塊通常支持的輸入電壓范圍為 85V 到 264V AC 或 100V 到 300V DC，適用于多種電源環境。
輸出電壓：
- 輸出電壓一般為 24V DC，具體輸出電壓和電流參數需根據應用需求確認。
輸出功率：
- 輸出功率通常為 100W 或更高，具體取決于具體型號和應用。
工作溫度范圍：
- 適應的工作溫度范圍一般為 -20°C 至 +60°C，適合各種工業環境。
尺寸和安裝：
- 模塊化設計，通常符合標準的 DIN 導軌安裝規格，易于集成到現有控制系統中。
通訊接口：
- 提供多種通訊接口選項，便于與其他設備或系統進行集成。
英文資料：
The GE DS3820PSCB1C1B power module is a high-performance power module produced by General Electric (GE), widely used in industrial automation, process control, and power systems. This module emphasizes reliability and efficiency in its design to meet the needs of various industrial applications. The following is a detailed introduction to the power module, including its main functions, technical specifications, application areas, etc.
major function
Power supply:
Provide stable power output to ensure that connected devices (such as controllers, sensors, actuators, etc.) operate normally at the required voltage and current.
Overload protection:
Built in overload and short circuit protection functions prevent equipment damage caused by excessive current, ensuring the safety and stability of the system.
Fault diagnosis:
Equipped with fault detection and alarm functions, providing operational status information to users through indicator lights or communication interfaces for easy troubleshooting and maintenance.
Thermal management:
Design an effective heat dissipation mechanism to ensure stable operation under high load conditions and extend the service life of the equipment.
Efficient design:
Optimized power conversion efficiency, reduced energy consumption, and improved overall system energy efficiency.
technical specifications
Input voltage range:
This module typically supports an input voltage range of 85V to 264V AC or 100V to 300V DC, suitable for various power environments.
Output voltage:
The output voltage is generally 24V DC, and the specific output voltage and current parameters need to be confirmed according to application requirements.
Output power:
The output power is usually 100W or higher, depending on the specific model and application.
Working temperature range:
The suitable working temperature range is generally -20 ° C to+60 ° C, suitable for various industrial environments.
Size and installation:
Modular design typically conforms to standard DIN rail installation specifications and is easy to integrate into existing control systems.
Communication interface:
Provide multiple communication interface options for easy integration with other devices or systems.

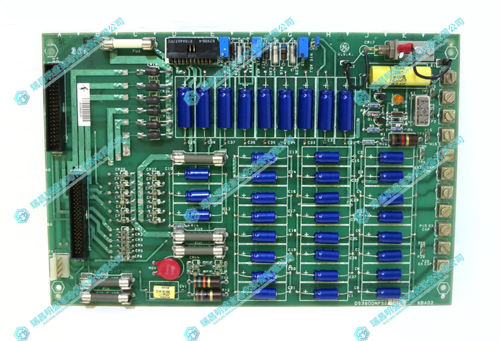

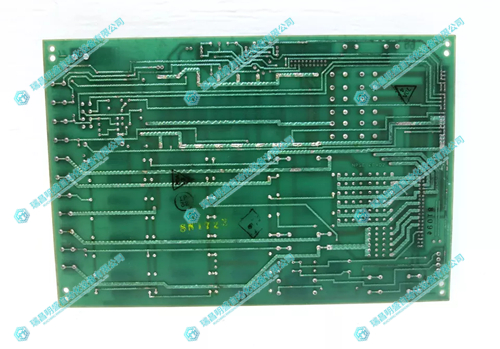

2.產 品 展 示
