ICS TRIPLEX 8431處理器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ICS Triplex 8431 是一款高可靠性處理器模塊，專為關鍵任務和安全相關的工業自動化控制系統設計。以下是關于該模塊的詳細介紹：
1. 產品概述
- 型號: ICS Triplex 8431
- 類型: 處理器模塊
- 品牌: ICS Triplex（羅克韋爾自動化旗下品牌）
- 用途: 用于冗余控制系統，特別是需要高可用性和容錯能力的應用領域，如石油天然氣、化工、能源和過程自動化等。
2. 主要特點
高可靠性
設計基于三模冗余（TMR）架構，確保系統即使在單點故障下仍能持續運行。實時處理能力
提供高性能的處理能力，可滿足復雜工業控制過程的實時需求。安全認證
符合 SIL 3 級功能安全認證，適用于安全關鍵的應用。模塊化設計
支持熱插拔，便于安裝、維護和升級，減少系統停機時間。靈活通信
支持多種工業通信協議，可輕松集成到現有控制系統中。診斷與自恢復
內置強大的自診斷功能，可檢測、隔離和恢復故障，保持系統正常運行。
3. 技術規格
處理能力:
- 高速 32 位處理器
- 支持復雜控制算法和多任務處理
通信接口:
- RS-232、RS-485、以太網等標準接口
- 支持 Modbus、EtherNet/IP、Profibus 等工業協議
電源要求:
- 24V DC 工業標準電源
內存容量:
- 提供大容量的內存，用于程序存儲和數據處理
環境適應性:
- 工作溫度范圍: -40°C 至 +70°C
- 抗振動和抗沖擊能力，適合惡劣工業環境
安裝方式:
- 19 英寸機架式安裝或定制外殼安裝
英文資料：
ICS Triplex 8431 is a high reliability processor module designed specifically for critical tasks and safety related industrial automation control systems. The following is a detailed introduction about the module:
1. Product Overview
model: ICS Triplex 8431
Type: Processor Module
Brand: ICS Triplex (a brand under Rockwell Automation)
Purpose: Used for redundant control systems, especially in application areas that require high availability and fault tolerance, such as oil and gas, chemical, energy, and process automation.
2. Main features
high reliability
The design is based on the third mock examination Redundancy (TMR) architecture to ensure that the system can continue to operate even under a single point of failure.
Real time processing capability
Provide high-performance processing capabilities to meet the real-time requirements of complex industrial control processes.
Security certification
Compliant with SIL 3 functional safety certification, suitable for safety critical applications.
Modular design
Support hot swapping, easy to install, maintain, and upgrade, reducing system downtime.
Flexible communication
Supports multiple industrial communication protocols and can be easily integrated into existing control systems.
Diagnosis and self recovery
Built in powerful self diagnostic function, capable of detecting, isolating, and restoring faults to maintain normal system operation.
3. Technical specifications
Processing ability:
High speed 32-bit processor
Support complex control algorithms and multitasking processing
Communication interface:
RS-232、RS-485、 Ethernet and other standard interfaces
Supports industrial protocols such as Modbus, EtherNet/IP, Profibus, etc
Power requirements:
24V DC industrial standard power supply
Memory capacity:
Provide large capacity memory for program storage and data processing
Environmental adaptability:
Working temperature range:- 40 ° C to+70 ° C
Resistance to vibration and impact, suitable for harsh industrial environments
Installation method:
19 inch rack mounted or custom shell installation

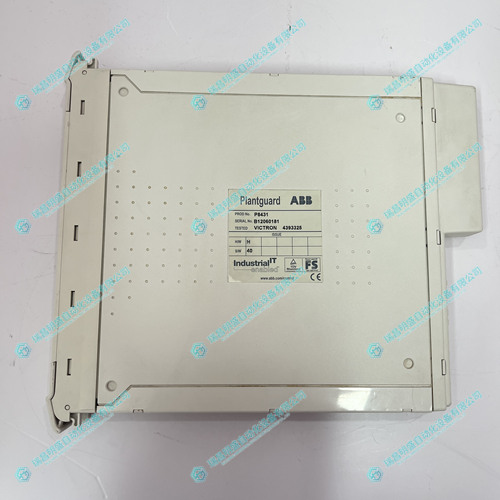

2.產 品 展 示
