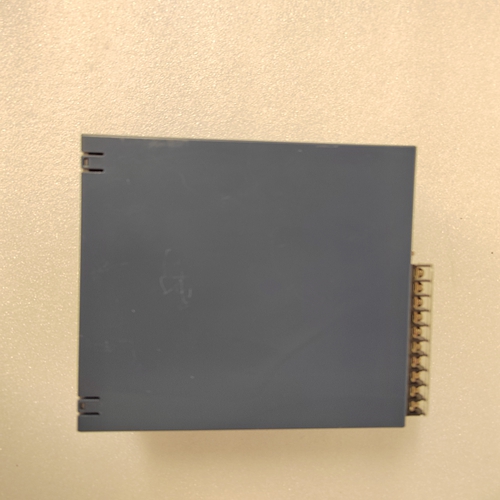

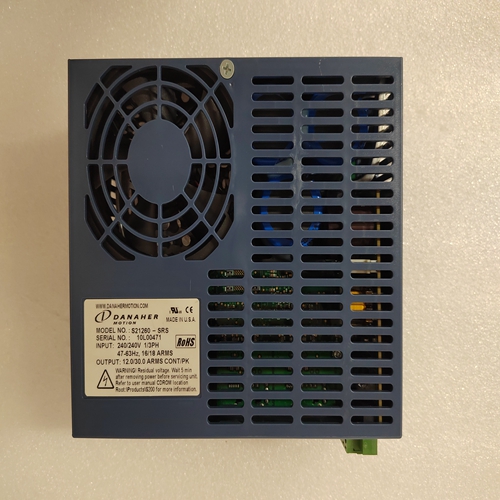

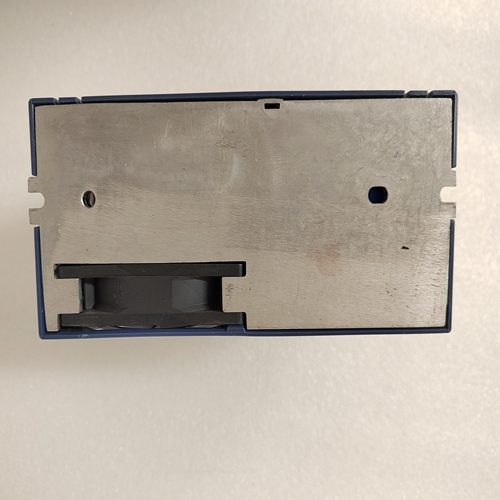

DANAHER S21260-SRS驅動模塊
在圖像目錄中，您將找到手冊目錄，操作系統目錄和驅動程序目錄。
手冊目錄包含快速參考指南、技術參考手冊和國家儀器軟件手冊
Adobe Acrobat格式。要訪問任何手冊，請將目錄更改為c： \images\manuals并列出該目錄的內容。你會看到多個文件，每個設備對應一個文件。
os目錄包含與操作系統對應的子目錄控制器上安裝的系統。其余目錄對應于控制器中的每個設備。
這些目錄中的每一個都是設備的驅動程序。這些文件并且目錄完全從制造商分發盤復制，因此，命名約定因設備而異。
PXI特性PXI觸發器連接
NI PXI-8105前面板上的SMB連接器可以連接到或從任何PXI背板觸發線。觸發分配過程需要：
防止兩個資源連接到同一觸發行，導致觸發器被雙重驅動并且可能損壞硬件。在本手冊出版時，該軟件尚未用于窗戶。有關更多信息，請聯系國家儀器。底盤配置
PXI系統的配置通過測量處理
Automation Explorer（MAX），包括預裝軟件
在您的控制器上。MAX創建pxisys。ini文件，它定義PXI系統的布局和參數?；綪XI系統配置
1.啟動MAX。
2.在配置樹中，單擊設備和接口分支展開它。
3.如果PXI系統控制器尚未配置，則將其標記為
PXI系統（未識別）。右鍵單擊此條目以顯示
彈出菜單，然后從標識為子菜單單擊PXI系統控制器。機箱（或多個機箱，位于多信道配置）。通過以下方式識別每個機箱：
右鍵單擊其條目，然后選擇相應的機箱型號
通過“標識為”子菜單。進一步擴展PXI系統
分支顯示系統中可識別的所有設備
NI-VISA。識別控制器和所有機箱后，所需的pxisys。ini文件已完成。
In the images directory, you will find a manuals directory,
an os directory, and a drivers directory.
The manuals directory contains quick reference guides, technical
reference manuals, and National Instruments software manuals, all in
Adobe Acrobat format. To access any manual, change your directory to
c:\images\manuals and list the contents of that directory. You will see
several files, one corresponding to each device.
The os directory contains a subdirectory corresponding to the operating
system installed on your controller.
The rest of the directories correspond to each device in your controller.
Within each of these directories are the drivers for the devices. These files
and directories are copied exactly from the manufacturer distribution disks,
so the naming conventions vary from device to device.
PXI Features
PXI Trigger Connectivity
The SMB connector on the NI PXI-8105 front panel can connect to or from
any PXI backplane trigger line. A trigger allocation process is needed to
prevent two resources from connecting to the same trigger line, resulting in
the trigger being double-driven and possibly damaging the hardware. At
the time of this manual’s publication, this software is not yet available for
Windows. Contact National Instruments for more information.
Chassis Configuration
Configuration of the PXI system is handled through Measurement &
Automation Explorer (MAX), included with the software pre-installed
on your controller. MAX creates the pxisys.ini file, which defines
the layout and parameters of your PXI system. Basic PXI System Configuration
1. Launch MAX.
2. In the Configuration tree, click the Devices and Interfaces branch to
expand it.
3. If the PXI system controller has not yet been configured, it is labeled
PXI System (Unidentified). Right-click this entry to display the
pop-up menu, then select the appropriate controller model from the
Identify As submenu Click the PXI System controller. The chassis (or multiple chassis, in a
multichassis configuration) is listed below it. Identify each chassis by
right-clicking its entry, then selecting the appropriate chassis model
through the Identify As submenu. Further expanding the PXI System
branch shows all devices in the system that can be recognized by
NI-VISA. When your controller and all your chassis are identified,
the required pxisys.ini file is complete.
