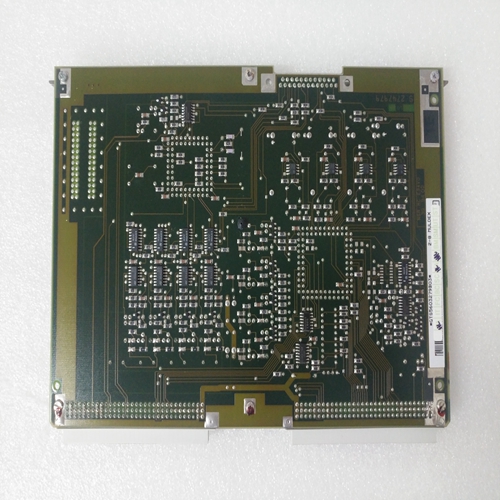

SAT RM3141-01-02輸入電子模塊
對于特殊應用，驅動系統的性能可以：通過附加模塊（附加泄放器、TBM、附加電容器、CZ或TCM）進一步擴展。有關這些的更多詳細信息，請參閱來自電源模塊的文檔。
各種伺服驅動模塊的具體特性，以及下表總結了供應模塊：
伺服驅動特性單元
適用于MAC 71至MAC 160的TDM 1標準伺服驅動模塊馬達
用于MAC 63到MAC 93的TDM 2廢棄專用單元馬達
用于MAC 63至MAC的TDM 3標準伺服驅動模塊112B電機
適用于MAC 21、MAC 25和MAC 41的TDM 4伺服驅動模塊電機（內置于驅動模塊中的反饋電子設備代替電機用于低噪聲應用的TDM 6伺服驅動模塊具有溫度監視器、制動器和MAC 63至MAC 93電機的啟動聯鎖TDM 7伺服驅動模塊，用于低噪聲應用和具有溫度監視器、制動器和MAC 21、MAC 25和MAC 41的啟動聯鎖電機（內置于驅動模塊中的反饋電子設備代替電機）
KDS 1伺服驅動模塊采用冷運行技術
對于MAC 90至MAC 160電機（由于內置外部熱交換器：在控制柜）。
電源裝置，用于連接大約4個平均機械輸出的伺服驅動器功率為4.1kW。
TVM 2標準電源裝置，用于連接多達平均約6個伺服驅動器機械輸出4.1 kW。
TVD 1電源裝置，直接連接到3 x 380-460電壓電源，內置電源接觸器。
采用冷運行技術的KDV 1電源裝置（由于外部散熱器，在控制柜），用于一個主驅動器和6個伺服驅動器
平均機械輸出為28kW。
KDV 2與KDV 1相同，但不需要串聯電阻器
用于通電的電源輸入。受控制動，尤其是相關異步主驅動的制動可能的工件和刀具可以自由運行。
KDV 3與KDV 2相同，但也為機器提供能量回收負載質量大，加工周期短。
KDV 4與KDV 3相同，但與380直接電源連接-460伏電源和受控鏈路電路電壓。
For special applications the performance of the drive system can be
further extended by additional modules (additional bleeder, TBM, additional capacitors, CZ or TCM). Further details of these can be obtained
from the documentation covering the power supply modules.
The specific characteristics of the various servo drive modules and
supply modules are summarized in the following table:
Servo drive Characteristics
module
TDM 1 Standard servo drive module for MAC 71 to MAC 160
motors
TDM 2 Obsolescent special unit for MAC 63 to MAC 93
motors
TDM 3 Standard servo drive module for MAC 63 to MAC
112B motors
TDM 4 Servo drive module for MAC 21, MAC 25, MAC 41
motors (feedback electronics built into drive module
instead of motor
TDM 6 Servo drive module for low-noise applications and
with interface for temperature monitor, brake and
starting interlock for MAC 63 to MAC 93 motors
TDM 7 Servo drive module for low-noise applications and
with interface for temperature monitor, brake and
starting interlock for MAC 21, MAC 25, MAC 41
motors (feedback electronics built into drive module
instead of motor)
KDS 1 Servo drive module using cold-running technology
for MAC 90 to MAC 160 motors (due to built-on
external heat exchanger no heat losses occur in the
control cabinet).
Power supply unit for connection of up to approximately
4 servo drives of up to an average mechanical output
of 4.1 kW.
TVM 2 Standard power supply unit for connection of up to
approximately 6 servo drives of up to an average
mechanical output of 4.1 kW.
TVD 1 Power supply unit for direct connection to 3 x 380-460
volt mains, with built-in power contactor.
KDV 1 Power supply unit using cold-running technology
(due to external heatsink, no heat losses occur in the
control cabinet) for one main drive and 6 servo drives
with an average mechanical output of 28 kW.
KDV 2 As KDV 1, but no series resistors required in the
mains input for power-up. Controlled braking, especially of an associated asynchronous main drive is
possible. Workpiece and tool can run free.
KDV 3 As KDV 2, but also has energy recovery for machines
with large load masses and short machining cycles.
KDV 4 As KDV 3, but with direct mains connection to 380-
460 volt supplies, and controlled link circuit voltage.
