NI PXI-2548高密度矩陣開關模塊功能
1.產 品 資 料 介 紹：
中文資料：
NI PXI-2548是一款高密度矩陣開關模塊，具有廣泛的應用領域。以下是關于NI PXI-2548的配置說明、功能作用和應用領域的概述：
配置說明： NI PXI-2548是一種基于PXI（PCI eXtensions for Instrumentation）平臺的模塊。它采用了高密度矩陣開關技術，可提供多達768個交叉開關點。模塊支持4線路和8線路矩陣配置，可滿足不同應用需求。
功能作用：
高密度開關：NI PXI-2548模塊提供了大量的交叉開關點，可用于在測試和測量系統中建立復雜的連接和路由關系。它可以實現高速、可靠的信號切換和路由，確保精確的信號傳遞和測量準確性。
靈活配置：模塊支持4線路和8線路矩陣配置，可以根據需要進行靈活配置。用戶可以根據具體應用要求選擇適當?shù)木仃嚺渲?，以滿足不同信號類型和連接需求。
高帶寬和低插入損耗：NI PXI-2548模塊具有高帶寬特性，適用于高頻率和寬帶信號的傳遞。此外，它還具有低插入損耗，可以保持信號質量，并最小化對被測設備的影響。
應用領域：
自動測試系統（ATE）：NI PXI-2548模塊在ATE系統中廣泛應用，用于建立測試點之間的連接和切換。它可以在自動化測試過程中快速、可靠地切換測試信號，并幫助提高測試效率和準確性。
無線通信測試：在無線通信測試中，NI PXI-2548模塊可用于信號路由和切換，支持不同頻段和通信協議的測試。它可以實現快速切換不同天線、設備和測試點之間的信號連接，用于評估和優化無線通信系統的性能。
傳感器和測量系統：該模塊可以用于構建傳感器網絡和測量系統，用于監測和控制不同類型的傳感器。通過切換和連接傳感器信號，NI PXI-2548模塊可以幫助實現實時監測、數據采集和反饋控制等應用。
英文資料：
NI PXI-2548 is a high density matrix switch module with a wide range of applications. The following is an overview of the configuration, functionality, and application areas of NI PXI-2548:
Configuration instructions:
NI PXI-2548 is a module based on the PXI (PCI eXtensions for Instrumentation) platform. It adopts high density matrix switching technology and can provide up to 768 cross switching points. The module supports 4-line and 8-line matrix configurations, which can meet different application requirements.
Function:
High density switch: The NI PXI-2548 module provides a large number of cross switching points, which can be used to establish complex connection and routing relationships in testing and measurement systems. It can achieve high-speed and reliable signal switching and routing, ensuring accurate signal transmission and measurement accuracy.
Flexible configuration: The module supports 4-line and 8-line matrix configurations, and can be flexibly configured as needed. Users can choose appropriate matrix configurations based on specific application requirements to meet different signal types and connection requirements.
High bandwidth and low insertion loss: The NI PXI-2548 module has high bandwidth characteristics and is suitable for the transmission of high-frequency and broadband signals. In addition, it also has low insertion loss, which can maintain signal quality and minimize the impact on the tested equipment.
Application field:
Automatic Test System (ATE): The NI PXI-2548 module is widely used in ATE systems to establish connections and switches between test points. It can quickly and reliably switch test signals during the automated testing process, and help improve testing efficiency and accuracy.
Wireless communication testing: In wireless communication testing, the NI PXI-2548 module can be used for signal routing and switching, supporting testing of different frequency bands and communication protocols. It can quickly switch signal connections between different antennas, devices, and test points for evaluating and optimizing the performance of wireless communication systems.
Sensors and Measurement Systems: This module can be used to construct sensor networks and measurement systems for monitoring and controlling different types of sensors. By switching and connecting sensor signals, the NI PXI-2548 module can help achieve real-time monitoring, data acquisition, and feedback control applications.

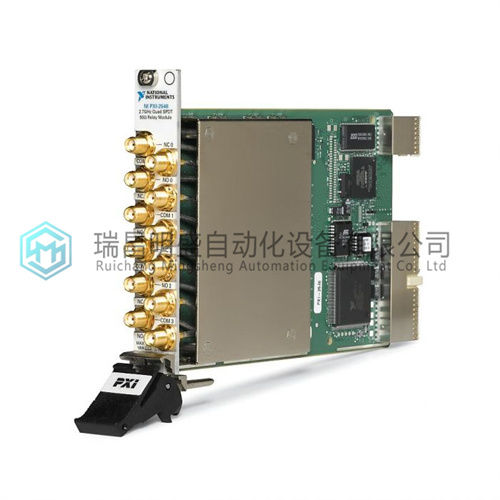

2.產 品 展 示
