MOOG D633-313B ?伺服閥 PDF資料
1.產 品 資 料 介 紹：
MOOG D633-313B 伺服閥說明
一、總體概述
MOOG D633-313B 是 D633 系列高性能液壓伺服閥，廣泛應用于航空、工業自動化、機床控制和測試平臺等高精度液壓系統。
該伺服閥能夠?qū)㈦娦盘柧_轉換為液壓流量或壓力輸出，實現執行器的精密位置、速度或力控制，滿足高動態響應和高精度控制的需求。
二、主要特性
控制類型：比例伺服閥，用于精確控制液壓執行器
控制方式：電液控制，通過直流電信號調節流量
閥口類型：四口三位結構，支持雙向液壓控制
響應速度：高動態響應，適合高速控制系統
線性特性：輸出流量與輸入信號高度線性，保證精準控制
重復性：高重復精度，確保執行器動作穩定
電氣接口：標準 ±10V 或 ±12V 信號輸入，依系統配置而定
三、功能特點
高精度控制
D633-313B 能夠?qū)崿F(xiàn)精確的流量和壓力調節，滿足高要求液壓系統的控制任務。快速響應
閥體結構優化，在高動態系統中能夠快速響應，減少滯后和過沖。耐用可靠
閥體及內部組件采用高精度加工和耐磨材料，適應長期工業環境使用。廣泛適用性
可用于機械臂、飛行控制系統、工業自動化及測試平臺等液壓控制系統。調試方便
支持通過電氣信號調節閥工作特性，便于系統集成和性能優化。
MOOG D633-313B ?伺服閥 英文介紹
MOOG D633-313B Servo Valve Description
1、 Overall Overview
MOOG D633-313B is a high-performance hydraulic servo valve of the D633 series, widely used in high-precision hydraulic systems such as aviation, industrial automation, machine tool control, and testing platforms.
This servo valve can accurately convert electrical signals into hydraulic flow or pressure output, achieving precise position, speed, or force control of the actuator, meeting the requirements of high dynamic response and high-precision control.
2、 Main characteristics
Control type: Proportional servo valve, used for precise control of hydraulic actuators
Control method: electro-hydraulic control, regulating flow rate through DC electrical signals
Valve port type: four port three position structure, supporting bidirectional hydraulic control
Response speed: High dynamic response, suitable for high-speed control systems
Linear characteristics: The output flow rate is highly linear with the input signal, ensuring precise control
Repeatability: High repeatability accuracy ensures stable actuator action
Electrical interface: Standard ± 10V or ± 12V signal input, depending on system configuration
3、 Functional Features
high-precision control
D633-313B can achieve precise flow and pressure regulation, meeting the control tasks of high demand hydraulic systems.
quick response
Optimization of valve body structure enables rapid response in high dynamic systems, reducing hysteresis and overshoot.
durable and reliable
The valve body and internal components are made of high-precision machining and wear-resistant materials, suitable for long-term industrial environment use.
wide applicability
Can be used for hydraulic control systems such as robotic arms, flight control systems, industrial automation, and testing platforms.
Easy debugging
Support regulating valve operating characteristics through electrical signals, facilitating system integration and performance optimization.

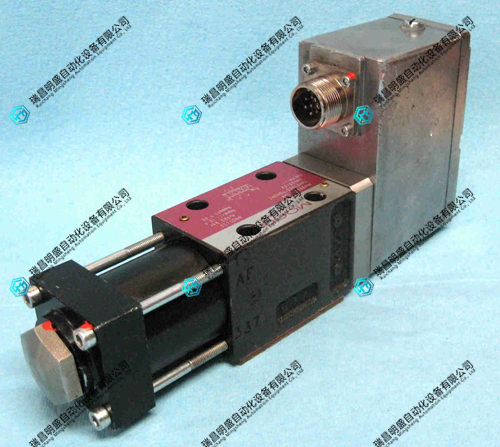

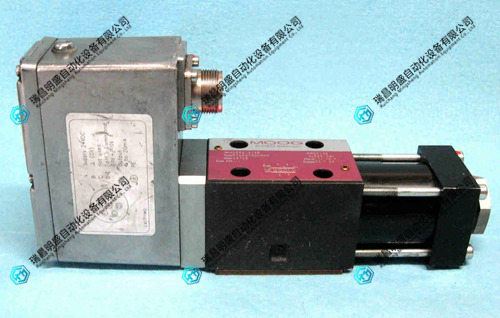

MOOG D633-313B ?伺服閥 產品展示
