ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 可控硅模塊 PDF資料
1.產 品 資 料 介 紹：
ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 可控硅模塊 產品特點：
高功率承載能力：
該模塊采用高電流、高耐壓的可控硅（SCR）元件設計，能夠在大電流、高電壓環境下穩定工作，適用于重載工業應用場合。出色的熱穩定性與散熱性能：
模塊內部結構經過優化，配合高導熱金屬基板及高效散熱片設計，確保在高溫、高負載下仍能長期可靠運行。低導通壓降，能效高：
可控硅芯片具有低導通壓降特性，有效減少功率損耗，提升系統整體能效，降低運行成本。高可靠性與抗沖擊能力：
采用工業級封裝與高強度絕緣結構，具備優異的抗電壓沖擊、抗機械震動和抗環境干擾能力。精確的電流控制性能：
支持精密相位控制與觸發控制，響應速度快，適合精密功率調節、速度控制及軟啟動應用。模塊化設計：
GVC704AE01為標準化模塊封裝，便于系統集成、更換及維護，提升設備可用性。多重保護機制：
內置過流、過壓、過溫保護功能，并可與外部控制單元配合實現閉環保護控制，確保系統運行安全。兼容性強：
可與ABB驅動控制系統及電源控制平臺（如ACS、DCS系列）無縫配合使用，便于構建高性能電力電子系統。典型應用領域：
工業直流電機調速系統
高頻加熱與感應爐控制
電力變流器與整流裝置
冶金、電解、電鍍等高功率整流系統
大功率UPS與電力電子變換設備
ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 可控硅模塊 英文介紹
ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 thyristor module product features:
High power carrying capacity:
This module adopts a high current, high voltage controllable silicon (SCR) element design, which can work stably in high current and high voltage environments and is suitable for heavy-duty industrial applications.
Excellent thermal stability and heat dissipation performance:
The internal structure of the module has been optimized, coupled with the design of high thermal conductivity metal substrates and efficient heat dissipation fins, to ensure long-term reliable operation under high temperature and high load conditions.
Low conduction voltage drop, high energy efficiency:
Controllable silicon chips have low conduction voltage drop characteristics, effectively reducing power loss, improving overall system energy efficiency, and reducing operating costs.
High reliability and impact resistance:
Adopting industrial grade packaging and high-strength insulation structure, it has excellent resistance to voltage shock, mechanical vibration, and environmental interference.
Accurate current control performance:
Supports precise phase control and trigger control, with fast response speed, suitable for precision power regulation, speed control, and soft start applications.
Modular design:
GVC704AE01 is a standardized module package that facilitates system integration, replacement, and maintenance, improving equipment availability.
Multiple protection mechanisms:
Built in overcurrent, overvoltage, and overtemperature protection functions, and can be coordinated with external control units to achieve closed-loop protection control, ensuring the safe operation of the system.
Strong compatibility:
It can be seamlessly integrated with ABB drive control systems and power control platforms (such as ACS and DCS series) to facilitate the construction of high-performance power electronic systems.
Typical application areas:
Industrial DC Motor Speed Control System
High frequency heating and induction furnace control
Power converter and rectifier device
High power rectification systems for metallurgy, electrolysis, electroplating, etc
High power UPS and power electronic conversion equipment

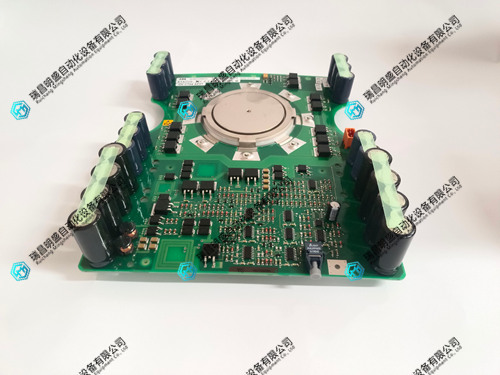

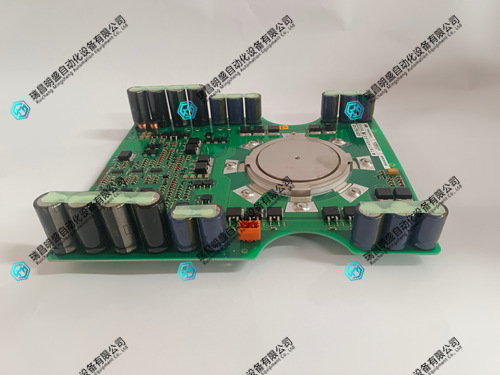

ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 可控硅模塊 產品展示
