TRICONEX 3000470-510 9760-210邏輯控制器模塊 PDF資料
1.產 品 資 料 介 紹：
產品定位
3000470?510：模擬信號終端板模塊，用于接入和輸出 0?5?V 或 0?10?V 模擬量信號。
9760?210：數字輸入終端板模塊，用于接入外部數字信號，為控制系統提供可靠的輸入接口。
兩者均屬于 Triconex 系列模塊化 I/O 系統，可與容錯三余度（TMR）控制系統配合使用。
主要特點
模塊化設計
可安裝在 Triconex 系統機架中，支持靈活組合和更換。
提供標準化端子接口，便于現場接線和維護。
信號類型支持
3000470?510：模擬量輸入/輸出，0?5?V 或 0?10?V。
9760?210：數字量輸入，可直接連接開關量或邏輯信號。
高可靠性
專為安全關鍵和工業自動化環境設計。
支持三冗余系統架構，保證容錯和持續運行。
工業環境適應性
寬溫工作范圍和存儲范圍。
抗振動、抗干擾，適合復雜工業現場。
易維護性
模塊化熱插拔設計，便于現場替換或升級。
LED 指示燈顯示通道狀態和模塊工作狀態（具體視型號而定）。
典型應用
工業過程自動化系統的模擬量和數字量信號接入。
高可靠性和安全要求的三冗余控制系統（TMR）。
石化、電力、能源、交通等工業領域的 I/O 接口擴展。
TRICONEX 3000470-510 9760-210邏輯控制器模塊 英文介紹
Product positioning
3000470-510: Analog signal terminal board module, used for accessing and outputting 0-5V or 0-10V analog signals.
9760-210: Digital input terminal board module, used to connect external digital signals and provide reliable input interfaces for control systems.
Both belong to the Triconex series of modular I/O systems and can be used in conjunction with fault-tolerant triple redundancy (TMR) control systems.
Main Features
modular design
Can be installed in the Triconex system rack, supporting flexible combination and replacement.
Provide standardized terminal interfaces for easy on-site wiring and maintenance.
Signal type support
3000470-510: Analog input/output, 0-5 ? V or 0-10 ? V.
9760-210: Digital input, can be directly connected to switch or logic signals.
high reliability
Specially designed for safety critical and industrial automation environments.
Support triple redundant system architecture to ensure fault tolerance and continuous operation.
Industrial environment adaptability
Wide temperature working range and storage range.
Anti vibration and anti-interference, suitable for complex industrial sites.
Maintainability
Modular hot swappable design for easy on-site replacement or upgrade.
The LED indicator light displays the channel status and module working status (depending on the model).
Typical Applications
Analog and digital signal access for industrial process automation systems.
A triple redundant control system (TMR) with high reliability and safety requirements.
Expansion of I/O interfaces in industrial fields such as petrochemicals, power, energy, and transportation.

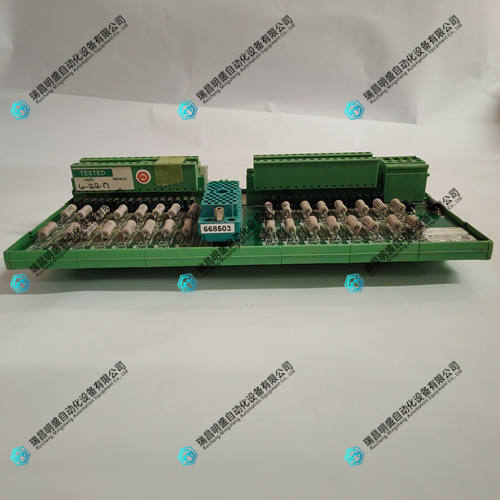

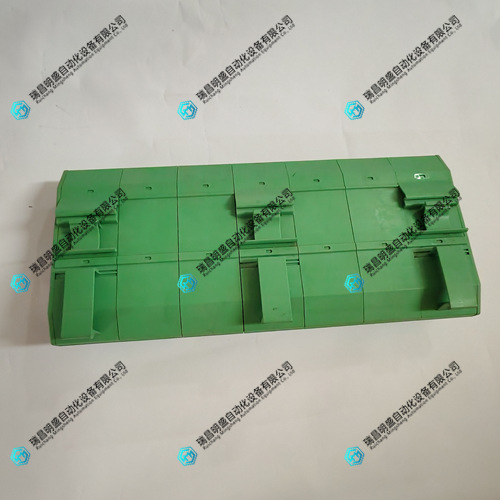

TRICONEX 3000470-510 9760-210邏輯控制器模塊 產品展示
