TRICONEX 3511脈沖輸入模塊 PDF資料
1.產 品 資 料 介 紹：
TRICONEX 3511 脈沖輸入模塊 產品特點
產品概述：
TRICONEX 3511 是 Tricon 安全控制系統（Tricon Safety System）中的脈沖輸入模塊，用于采集現場高速脈沖信號，如流量計、轉速傳感器或脈沖編碼器信號，為主處理器提供可靠的實時數據輸入。輸入類型：
支持直流脈沖信號輸入。
可采集頻率較高的脈沖信號，適用于流量計、轉速傳感器、編碼器等設備。
多通道設計：
提供多路獨立脈沖輸入通道（具體通道數量視型號和配置而定）。
通道獨立隔離，保證信號采集的準確性和抗干擾能力。
三模冗余 (TMR) 架構：
采用 Triconex TMR 設計，通過投票機制確保單點故障不會影響系統整體功能。
提升系統容錯性和安全可靠性，適合關鍵安全控制應用。
高精度與高速采集：
支持高速脈沖信號采集，保證對快速變化的工藝參數進行實時監測。
適合需要精確計量或控制的工業過程。
診斷與自檢功能：
內置通道狀態監測與模塊健康檢查。
異常或故障時自動隔離故障通道并向主處理器報警，保障系統連續運行。
模塊化安裝：
插入 Triconex 系統機架，可與 3008 主處理器、3625/3664 I/O 模塊及其他分析模塊無縫協作。
支持熱插拔功能，便于現場維護和模塊更換。
工業環境適應性：
工業級設計，抗電磁干擾、防震、防塵、防潮濕，適應復雜工況環境。
安全等級與應用：
符合 IEC 61508 SIL3 安全標準，適用于緊急停機 (ESD)、過程聯鎖及關鍵設備保護系統。
廣泛應用于石油化工、煉油廠、天然氣平臺、電廠及海上平臺等工業安全控制系統。
TRICONEX 3511脈沖輸入模塊 英文介紹
TRICONEX 3511 Pulse Input Module Product Features
Product Overview:
TRICONEX 3511 is a pulse input module in the Tricon Safety System, used to collect high-speed pulse signals on site, such as flow meters, speed sensors, or pulse encoders, and provide reliable real-time data input to the main processor.
Input type:
Support DC pulse signal input.
Capable of collecting high-frequency pulse signals, suitable for devices such as flow meters, speed sensors, encoders, etc.
Multi channel design:
Provide multiple independent pulse input channels (the specific number of channels depends on the model and configuration).
Channel independent isolation ensures the accuracy and anti-interference ability of signal acquisition.
The third mock examination Redundancy (TMR) architecture:
Adopting Triconex TMR design, the voting mechanism ensures that a single point of failure will not affect the overall functionality of the system.
Improve system fault tolerance and safety reliability, suitable for critical safety control applications.
High precision and high-speed acquisition:
Support high-speed pulse signal acquisition to ensure real-time monitoring of rapidly changing process parameters.
Suitable for industrial processes that require precise measurement or control.
Diagnostic and self checking functions:
Built in channel status monitoring and module health check.
Automatically isolate the faulty channel and alert the main processor in case of abnormality or malfunction, ensuring continuous operation of the system.
Modular installation:
Inserted into the Triconex system rack, it can seamlessly collaborate with the 3008 main processor, 3625/3664 I/O modules, and other analysis modules.
Support hot swappable function for easy on-site maintenance and module replacement.
Industrial environment adaptability:
Industrial grade design, resistant to electromagnetic interference, shock, dust, and moisture, suitable for complex working environments.
Security level and application:
Compliant with IEC 61508 SIL3 safety standards, suitable for emergency shutdown (ESD), process interlocking, and critical equipment protection systems.
Widely used in industrial safety control systems such as petrochemicals, refineries, natural gas platforms, power plants, and offshore platforms.

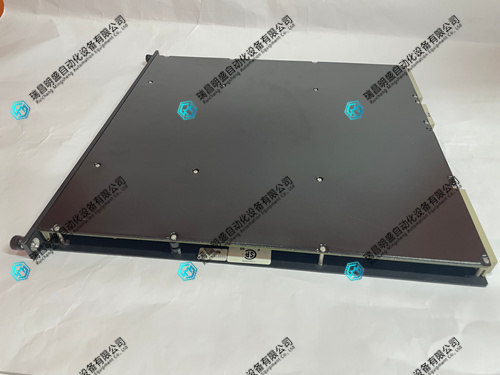

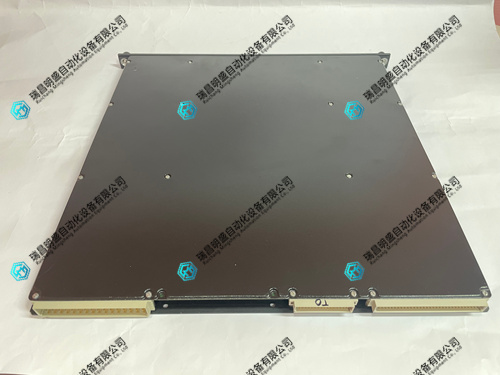

TRICONEX 3511脈沖輸入模塊 產品展示
