2098-DSD-020X伺服驅動器 PDF資料
1.產 品 資 料 介 紹：
AB 2098-DSD-020X 伺服驅動器簡介
2098-DSD-020X 是 Allen-Bradley Ultra3000 系列中的一款數字式伺服驅動器（Ultra3000-DSD 類型）。該系列以高動態性能、豐富的控制模式和良好的系統兼容性著稱，在自動化設備中廣泛使用。
產品定位
這款驅動器主要用于控制中小容量的交流伺服電機，具備精準運動控制能力，適合要求高速響應、位置精度較高的場合。
主要特點
全數字伺服控制：響應快速，能夠處理精密位置、速度與轉矩控制。
多種控制方式：支持位置、速度、轉矩、指令脈沖、模擬量輸入等多模式。
優秀的動態表現：Ultra3000 系列具有高帶寬伺服回路，適合快速啟停和頻繁動作的機械設備。
豐富的保護功能：具備過載、過流、過壓、編碼器異常、過熱等完整保護機制。
通信能力強：支持工業控制系統常見接口，便于與 PLC、運動控制器集成。
參數設置靈活：可通過軟件輕松配置，調試方便。
典型技術范圍（Ultra3000-DSD 系列特性）
20 代表驅動容量等級，該等級通常用于 2.0kW 左右的伺服電機。
常規參數范圍參考：
支持電機功率：約 1.5–2.0 kW
額定輸出電流范圍：與 020 等級相匹配的中等容量
輸入電源：AC 輸入
控制模式：位置/速度/力矩控制
反饋支持：增量編碼器、伺服反饋接口
通訊：可支持 SERCOS、數字 I/O 指令等（依據具體版本）
適用領域
包裝生產設備
自動裝配機械
高速點位系統
電子制造設備
搬運、分揀及輸送機械
CNC 輔助軸控制
Introduction to AB 2098-DSD-020X servo drive
2098-DSD-020X is a digital servo drive (Ultra3000-DSD type) in the Allen Bradley Ultra3000 series. This series is known for its high dynamic performance, rich control modes, and good system compatibility, and is widely used in automation equipment.
Product positioning
This driver is mainly used to control small and medium-sized AC servo motors, with precise motion control capabilities, suitable for situations that require high-speed response and high position accuracy.
Main Features
Full digital servo control: fast response, capable of handling precise position, speed, and torque control.
Multiple control modes: supporting multiple modes such as position, speed, torque, command pulse, analog input, etc.
Excellent dynamic performance: The Ultra3000 series features high bandwidth servo circuits, suitable for mechanical equipment with fast start stop and frequent movements.
Rich protection functions: equipped with complete protection mechanisms for overload, overcurrent, overvoltage, encoder abnormality, overheating, etc.
Strong communication capability: Supports common interfaces in industrial control systems, making it easy to integrate with PLCs and motion controllers.
Flexible parameter settings: can be easily configured through software, and debugging is convenient.
Typical technical scope (Ultra3000 DSD series features)
20 represents the drive capacity level, which is typically used for servo motors around 2.0kW.
Standard parameter range reference:
Supporting motor power: approximately 1.5-2.0 kW
Rated output current range: Medium capacity matched with 020 level
Input power supply: AC input
Control mode: position/speed/torque control
Feedback support: Incremental encoder, servo feedback interface
Communication: Supports SERCOS, digital I/O instructions, etc. (depending on the specific version)
Applicable fields
Packaging production equipment
Automatic assembly machinery
High speed point system
Electronic manufacturing equipment
Handling, sorting, and conveying machinery
CNC assisted axis control

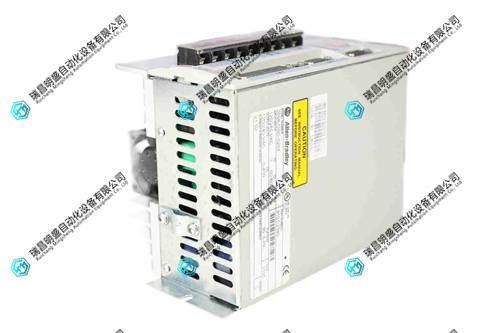

2098-DSD-020X伺服驅動器 產品展示
